Apply Albumentations Perturbations Using NRTK

This notebook demonstrates how to use Albumentations perturbers in an NRTK context using a sample image from the VisDrone dataset.

Documentation on the available perturbers and their parameters can be found on the documentation for the Albumentations module. Note, Kitware maintains a fork of albumentations, specifically for integration with NRTK. As development continues by the original authors of Albumentations, on AlbumentationsX, the functionality between the hosted documentation and our fork may diverge.

To run this notebook in Colab, use the link below:

Set Up the Environment

Note for Colab users: After setting up the environment, you may need to “Restart Runtime” to resolve package version conflicts (see the README for more info).

This notebook requires NRTK with the following extra: albumentations

• albumentations - Kitware’s fork of Albumentations for weather and transformation perturbations

Note: We are suppressing warnings within this notebook to reduce visual clutter for demonstration purposes. If any issues arise while executing this notebook, we recommend that this cell is not executed so that any related warnings are shown.

import warnings

warnings.filterwarnings("ignore")

%pip install -qU pip
print("Installing nrtk with required extras...")
try:
    import albumentations  # noqa: F401 -- intentionally unused, just checking availability
    import cv2  # noqa: F401 -- intentionally unused, just checking availability

    import nrtk  # noqa: F401 -- intentionally unused, just checking availability
except ImportError:
    %pip install -q "nrtk[albumentations,headless]"
    pass  # jupytext converts %pip to a comment, so pass keeps the block valid
print("Installing matplotlib...")
%pip install -q matplotlib
print("Installing headless OpenCV...")
%pip uninstall -qy opencv-python opencv-python-headless
%pip install -q opencv-python-headless
print("Done!")

Note: you may need to restart the kernel to use updated packages.
Installing nrtk with required extras...

Installing matplotlib...

Note: you may need to restart the kernel to use updated packages.
Installing headless OpenCV...

WARNING: Skipping opencv-python as it is not installed.

Note: you may need to restart the kernel to use updated packages.

ERROR: pip's dependency resolver does not currently take into account all the packages that are installed. This behaviour is the source of the following dependency conflicts.
pybsm 0.14.3 requires numpy<2.0,>=1.22; python_version < "3.12", but you have numpy 2.2.6 which is incompatible.
smqtk-classifier 0.20.0 requires numpy<2.0,>=1.23.5; python_version < "3.13", but you have numpy 2.2.6 which is incompatible.
smqtk-dataprovider 0.19.0 requires numpy<2.0,>=1.23.5; python_version < "3.13", but you have numpy 2.2.6 which is incompatible.

Note: you may need to restart the kernel to use updated packages.
Done!

%matplotlib inline
%config InlineBackend.figure_format = "jpeg"  # Use JPEG format for inline visualizations
import os
import urllib.request
from typing import TYPE_CHECKING

import numpy as np
from matplotlib import patches
from matplotlib import pyplot as plt
from matplotlib.axes import Axes
from PIL import Image
from smqtk_image_io.bbox import AxisAlignedBoundingBox

from nrtk.impls.perturb_image import AlbumentationsPerturber

Select Initial Image

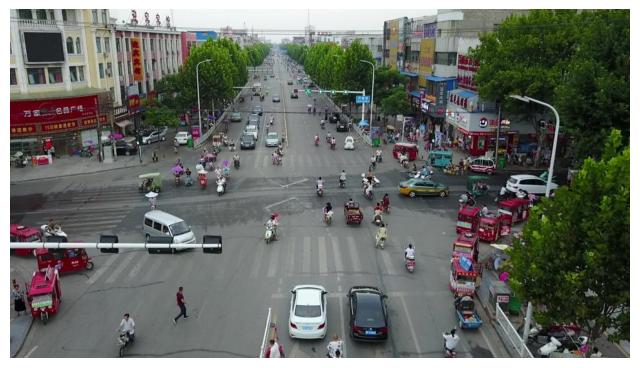

We’ll carry out perturbations on a single image from VisDrone.

data_dir = "./data"
os.makedirs(data_dir, exist_ok=True)

url = "https://data.kitware.com/api/v1/item/623880f14acac99f429fe3ca/download"

img_path = os.path.join(data_dir, "visdrone_img.jpg")
if not os.path.isfile(img_path):
    _ = urllib.request.urlretrieve(url, img_path)  # noqa: S310

img = np.asarray(Image.open(img_path))

plt.figure(figsize=(8, 8))
plt.axis("off")
_ = plt.imshow(img)

We’ll also define a helper functions for displaying our perturbations.

def display_pert(img: np.ndarray, descriptor: str = "", bbox: AxisAlignedBoundingBox | None = None) -> None:
    """Display perturbation."""
    _, axs = plt.subplots(figsize=(8, 8))
    if TYPE_CHECKING:
        assert isinstance(axs, Axes)
    if bbox:
        rect = patches.Rectangle(
            (bbox.min_vertex[0], bbox.min_vertex[1]),
            bbox.max_vertex[0] - bbox.min_vertex[0],
            bbox.max_vertex[1] - bbox.min_vertex[1],
            linewidth=2,
            edgecolor="r",
            facecolor="none",
        )
        axs.add_patch(rect)
    axs.set_title(descriptor)
    axs.imshow(img)

    axs.axis("off")

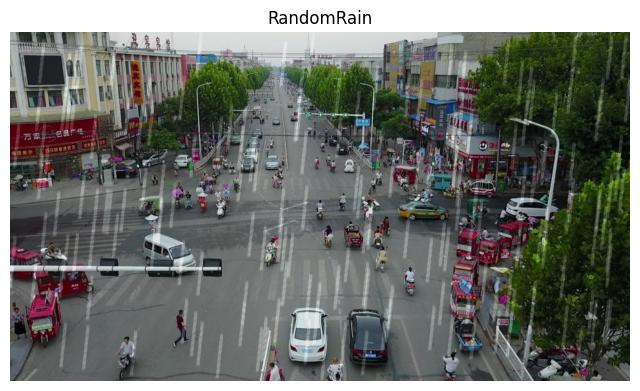

RandomRain

This transform simulates rainfall by overlaying semi-transparent streaks onto the image, creating a realistic rain effect. It can be used to augment datasets for computer vision tasks that need to perform well in rainy conditions.

Usage Notes:

The AlbumentationsPerturber accepts the following arguments:

• perturber: Name of the class extending BasicTransform (e.g. “RandomRain”)

• parameters: Dictionary of parameters for the chosen perturber’s constructor

• seed: Optional integer to set a seed for reproducibility

Note that parameters["p"] represents the probability of the perturbation occurring (default: 0.5). To ensure the transform always applies, set "p": 1.0 in the parameters.

parameters = {"brightness_coefficient": 0.9, "drop_width": 1, "blur_value": 5, "p": 1.0}
perturber = AlbumentationsPerturber(perturber="RandomRain", parameters=parameters, seed=7)
img_out, _ = perturber(image=img)
display_pert(img_out, "RandomRain")

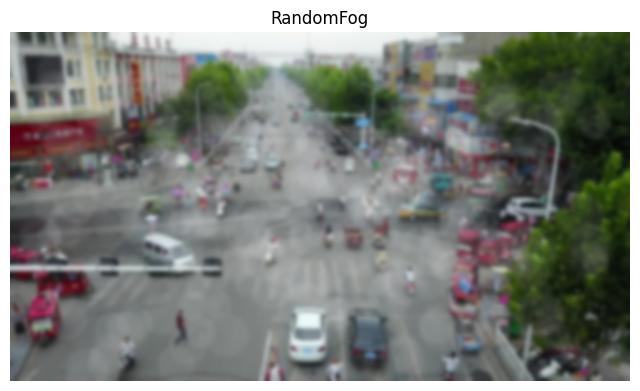

RandomFog

This transform simulates fog by adding semi-transparent overlays that mimic its visual characteristics of fog. The fog intensity and distribution can be controlled to create a range of fog-like conditions.

parameters = {"fog_coef_range": (0.7, 0.8), "alpha_coef": 0.1, "p": 1.0}
perturber = AlbumentationsPerturber(perturber="RandomFog", parameters=parameters, seed=7)
img_out, _ = perturber(image=img)
display_pert(img_out, "RandomFog")

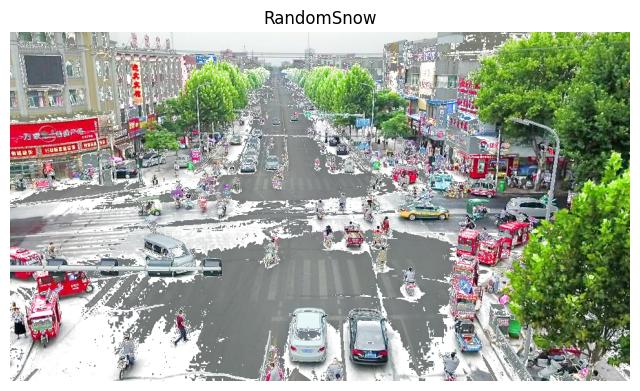

RandomSnow

This transform simulates snowfall by bleaching out some pixel values and adjusting brightness, creating a realistic snow effect on the image.

parameters = {"snow_point_range": (0.2, 0.4), "brightness_coeff": 2.5, "p": 1.0}

perturber = AlbumentationsPerturber(perturber="RandomSnow", parameters=parameters, seed=7)
img_out, _ = perturber(image=img)
display_pert(img_out, "RandomSnow")

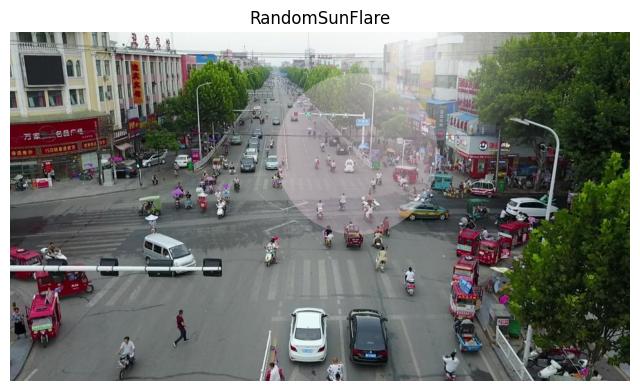

RandomSunFlare

This transform simulates a sun flare effect by overlaying multiple semi-transparent circles of varying sizes and intensities along a line originating from a “sun” point.

parameters = {"flare_roi": (0, 0, 1, 0.5), "angle_range": (0.25, 0.75), "p": 1.0}

perturber = AlbumentationsPerturber(perturber="RandomSunFlare", parameters=parameters, seed=7)
img_out, _ = perturber(image=img)
display_pert(img_out, "RandomSunFlare")

Bounding Boxes

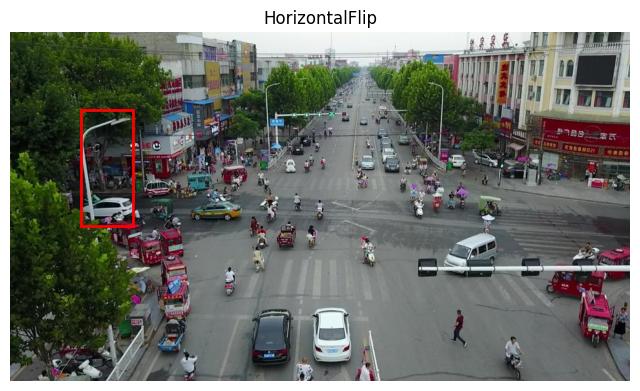

The following example performs a HorizontalFlip to demonstrate how a transform updates bounding boxes.

conf_dict = {}
conf_dict["label"] = 1.0
bboxes = [(AxisAlignedBoundingBox((770, 120), (850, 300)), conf_dict)]
perturber = AlbumentationsPerturber(perturber="HorizontalFlip", parameters={"p": 1})
img_out, output_bboxes = perturber(image=img, boxes=bboxes)

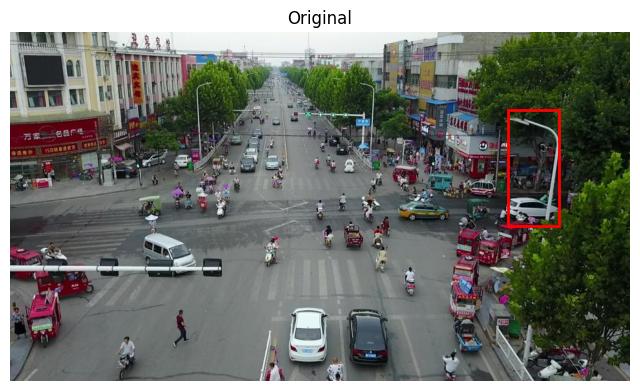

display_pert(img, "Original", bbox=bboxes[0][0])
if output_bboxes:
    op_bboxes = list(output_bboxes)[0][0]
    display_pert(img_out, "HorizontalFlip", bbox=op_bboxes)
