Example Notebook for Albumentations perturbers with NRTK

This simple notebook demonstrates how to use Albumentations perturbers in an NRTK context, we use a sample image from the VisDrone dataset.

Documentation on the available perturbers and their parameters can be found on the documentation for the Albumentations module

Set Up the Environment

Note: We are suppressing warnings within this notebook to reduce visual clutter for demonstration purposes. If any issues arise while executing this notebook, we recommend that this cell is not executed so that any related warnings are shown.

import warnings

warnings.filterwarnings("ignore")

import sys  # noqa: F401

!{sys.executable} -m pip install -qU pip
print("Installing nrtk...")
!{sys.executable} -m pip install -q nrtk
print("Installing matplotlib...")
!{sys.executable} -m pip install -q matplotlib
print("Installing headless OpenCV...")
!{sys.executable} -m pip uninstall -qy opencv-python opencv-python-headless  # make sure they're both gone.
!{sys.executable} -m pip install -q opencv-python-headless
print("Installing albumentations...")
!{sys.executable} -m pip install -q albumentations
print("Done!")

Installing nrtk...
Installing matplotlib...
Installing headless OpenCV...
Installing albumentations...
Done!

%matplotlib inline
%config InlineBackend.figure_format = "jpeg"  # Use JPEG format for inline visualizations
import os
import urllib.request
from typing import TYPE_CHECKING, Union

import numpy as np
from matplotlib import patches
from matplotlib import pyplot as plt
from matplotlib.axes import Axes
from PIL import Image
from smqtk_image_io.bbox import AxisAlignedBoundingBox

from nrtk.impls.perturb_image.generic.albumentations_perturber import AlbumentationsPerturber

Select Initial Image

We’ll carry out perturbations on a single image from VisDrone.

data_dir = "./data"
os.makedirs(data_dir, exist_ok=True)

url = "https://data.kitware.com/api/v1/item/623880f14acac99f429fe3ca/download"

img_path = os.path.join(data_dir, "visdrone_img.jpg")
if not os.path.isfile(img_path):
    _ = urllib.request.urlretrieve(url, img_path)  # noqa: S310

img = np.asarray(Image.open(img_path))

plt.figure(figsize=(8, 8))
plt.axis("off")
_ = plt.imshow(img)

We’ll also define a helper functions for displaying our perturbations.

def display_pert(img: np.ndarray, descriptor: str = "", bbox: Union[AxisAlignedBoundingBox, None] = None) -> None:
    """Display perturbation"""
    _, axs = plt.subplots(figsize=(8, 8))
    if TYPE_CHECKING:
        assert isinstance(axs, Axes)
    if bbox:
        rect = patches.Rectangle(
            (bbox.min_vertex[0], bbox.min_vertex[1]),
            bbox.max_vertex[0] - bbox.min_vertex[0],
            bbox.max_vertex[1] - bbox.min_vertex[1],
            linewidth=2,
            edgecolor="r",
            facecolor="none",
        )
        axs.add_patch(rect)
    axs.set_title(descriptor)
    axs.imshow(img)

    axs.axis("off")

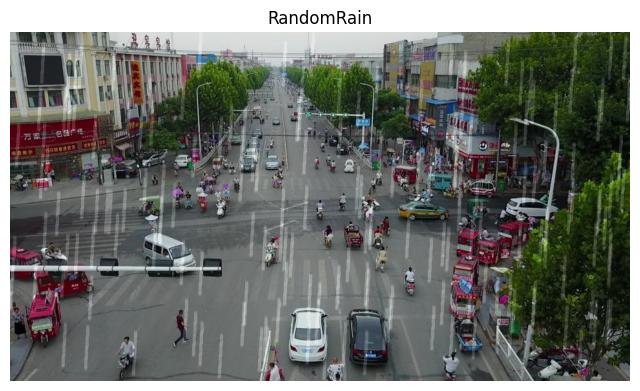

RandomRain

This transform simulates rainfall by overlaying semi-transparent streaks onto the image, creating a realistic rain effect. It can be used to augment datasets for computer vision tasks that need to perform well in rainy conditions.

Note the arguments to AlbumentationsPerturber:

• perturber: Name of the class which extends BasicTransform

• parameters: Parameters to the constructor of the chosen perturber

• seed: Optional. Sets a seed for random elements of the perturber for reproducibility

Note that paramters["p"] represents a probability of the perturbation occuring and is 0.5 by default. To ensure the transform occurs, included "p": 1.0 in paramters.

parameters = {"brightness_coefficient": 0.9, "drop_width": 1, "blur_value": 5, "p": 1.0}
perturber = AlbumentationsPerturber(perturber="RandomRain", parameters=parameters, seed=7)
img_out, _ = perturber(img)
display_pert(img_out, "RandomRain")

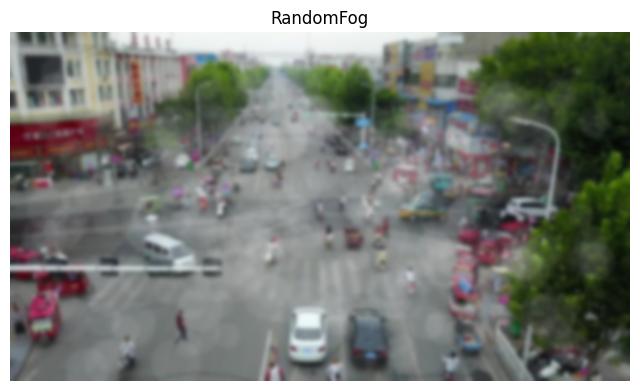

RandomFog

Simulates fog for the image by adding random fog-like artifacts. This transform creates a fog effect by generating semi-transparent overlays that mimic the visual characteristics of fog. The fog intensity and distribution can be controlled to create various fog-like conditions.

parameters = {"fog_coef_range": (0.7, 0.8), "alpha_coef": 0.1, "p": 1.0}
perturber = AlbumentationsPerturber(perturber="RandomFog", parameters=parameters, seed=7)
img_out, _ = perturber(img)
display_pert(img_out, "RandomFog")

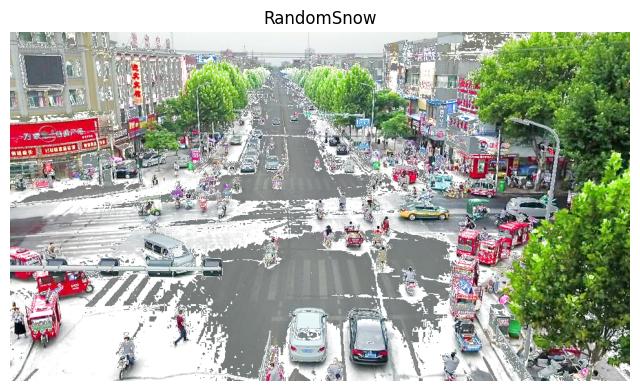

RandomSnow

This transform simulates snowfall by either bleaching out some pixel values

parameters = {"snow_point_range": (0.2, 0.4), "brightness_coeff": 2.5, "p": 1.0}

perturber = AlbumentationsPerturber(perturber="RandomSnow", parameters=parameters, seed=7)
img_out, _ = perturber(img)
display_pert(img_out, "RandomSnow")

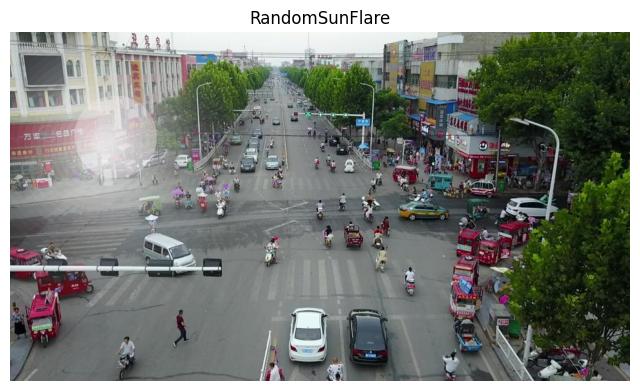

RandomSunFlare

Simulates a sun flare effect on the image by adding circles of light. This transform creates a sun flare effect by overlaying multiple semi-transparent circles of varying sizes and intensities along a line originating from a “sun” point.

parameters = {"flare_roi": (0, 0, 1, 0.5), "angle_range": (0.25, 0.75), "p": 1.0}

perturber = AlbumentationsPerturber(perturber="RandomSunFlare", parameters=parameters, seed=7)
img_out, _ = perturber(img)
display_pert(img_out, "RandomSunFlare")

Bounding Boxes

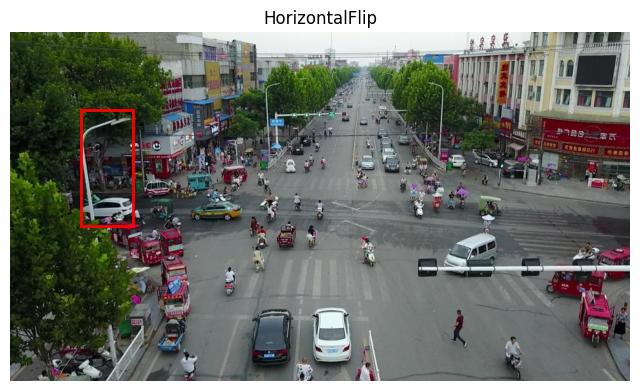

The following example performs a HorizontalFlip in order to demonstrate how bounding boxes are updated by a transform.

conf_dict = dict()
conf_dict["label"] = 1.0
bboxes = [(AxisAlignedBoundingBox((770, 120), (850, 300)), conf_dict)]
perturber = AlbumentationsPerturber(perturber="HorizontalFlip", parameters={"p": 1})
img_out, output_bboxes = perturber(img, bboxes)

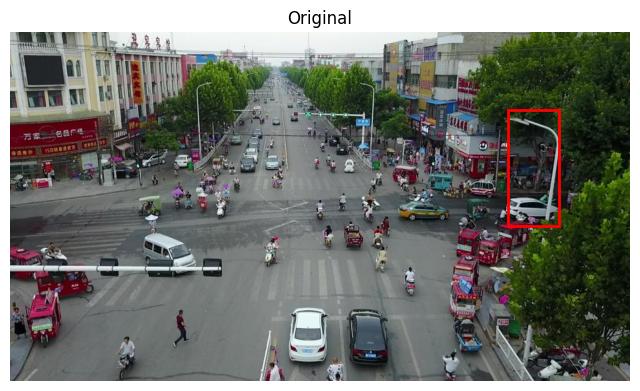

display_pert(img, "Original", bbox=bboxes[0][0])
if output_bboxes:
    op_bboxes = list(output_bboxes)[0][0]
    display_pert(img_out, "HorizontalFlip", bbox=op_bboxes)
